850nm 150m 40G Optical Transceiver Cisco QSFP-40G-SR4 Compatible

QSFP-40G-SR4 Compatible 40GBASE-SR4 QSFP+ 850nm 150m MTP/MPO Transceiver modules

Description

It integrates four data lanes in each direction with 40 Gbps bandwidth. Each lane can operate at 10.3125 Gbps up to 300 m using OM3 fiber or 400 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector.

Features

• 4 channels full-duplex transceiver modules

• Transmission data rate up to 10.5Gbps per channel

• 4 channels 850nm VCSEL array

• 4 channels PIN photo detector array

• Low power consumption <1.5W

• Hot Pluggable QSFP form factor

• Maximum link length of 100m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
• Single MPO connector receptacle
• Built-in digital diagnostic functions
• Operating case temperature 0°C to +70°C

• 3.3V power supply voltage

• RoHS 6 compliant (lead free)

Advantages

• Fully product line
• High Quality with ISO9001 , TUV , CE , FCC , UL and RoHS certificates

• 100%tested

• very fast delivery
• 3 year Warranty

Applications

• 40G Ethernet and OTU3

• Datacom/Telecom switch & router connections

• Data Aggregation and Backplane Applications

• Proprietary Protocol and Density Applications

• Infiniband transmission at 4ch SDR , DDR and QDR

Our QSFP 40G Product series

Guarantee

We promise all the advertised optical transceivers are brand new with new components and parts all new materials . All the optical transceivers have been through functional test and aging test . We provide 3 years warranty for all the optical transceivers from the date of shipment .

What we focus

We focus on all kinds of compatible optical transceiver modules , including QSFP , CFP , QSFP28 , GBIC , SFP , SFP+ , XENPAK , X2 , XFP , BIDI , CWDM,DWDM and other special transceiver modules . Our products are compatible with Cisco , Ciena , H3C , Extreme , HP , Foundry , Avaya , D-link , Alcatel , Riverstone , Enterasys , Netgear , Nortel , Juniper , Ruijie , Zyxel , Huawei , etc .

Our product line show

850nm 150m 40G Optical Transceiver

ROHS 850nm 40G Optical Transceiver

QSFP-40G-SR4 cisco compatible transceiver

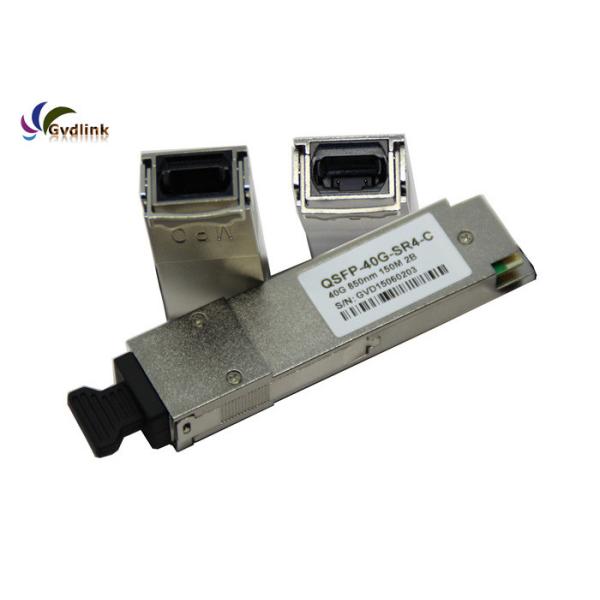

850nm 150m 40G Optical Transceiver Cisco QSFP-40G-SR4 Compatible Images
