GLC-BX40-U-I compatible 1.25G SFP BIDI Single fiber 1310nm/1490nm 40KM Transceiver
Bidi fast and gigabit ethernet SFP transceiver is a compact optical transceiver, module used in optical communications for both telecommunication and data bidirectional communications applications. We offer BIDI SFP transceivers which reach distances from 10KM up to 120KM.
SFP Fiber Transceiver Module Features
-
Support data rates 1.25G
-
Transmission distances from 2km to 120km over SMF
-
1310/1490nm DFB laser and PIN photodetector
-
Distance up to 40km
-
Compliant with SFP MSA and SFF-8472
-
Simplex LC or SC receptacle
-
Operating Case Temperature
-
Standard: 0 0 C ~ +70 0 C
-
Industrial: -40 0 C ~ +85 0 C
-
Compatible with RoHS
-
Support Digital Diagnostic Monitoring (DDM)
SFP Fiber Transceiver Module Advantages
- High Quality with ISO9001, TUV, CE, FCC, UL and RoHS certificates
-
Full product line
- 100%tested
-
fast delivery
- 5 year Warranty
SFP Fiber Transceiver Module Applications
1.25G 1000Base Ethernet
Gigabit Ethernet
Fiber Channel
Other Optical Links
Our WDM(BIDI) SFP product series
| P/N | Rate | Distance | Wavelength | Connector | DMMI |
| GVD-100BX-S43-3 | 155M | 3km | 1490nm/1310nm | SC/LC | Y/N |
| GVD-100BX-S34-3 | 155M | 3km | 1310nm/1490nm | SC/LC | Y/N |
| GVD-100BX-S53-3 | 155M | 3km | 1550nm/1310nm | SC/LC | Y/N |
| GVD-100BX-S35-3 | 155M | 3km | 1310nm/1550nm | SC/LC | Y/N |
| GVD-100BX-S43-20 | 155M | 20km | 1490nm/1310nm | SC/LC | Y/N |
| GVD-100BX-S34-20 | 155M | 20km | 1310nm/1490nm | SC/LC | Y/N |
| GVD-100BX-S53-20 | 155M | 20km | 1550nm/1310nm | SC/LC | Y/N |
| GVD-100BX-S35-20 | 155M | 20km | 1310nm/1550nm | SC/LC | Y/N |
| GVD-100BX-S43-40 | 155M | 40km | 1490nm/1310nm | SC/LC | Y/N |
| GVD-100BX-S34-40 | 155M | 40km | 1310nm/1490nm | SC/LC | Y/N |
| GVD-100BX-S53-40 | 155M | 40km | 1550nm/1310nm | SC/LC | Y/N |
| GVD-100BX-S35-40 | 155M | 40km | 1310nm/1550nm | SC/LC | Y/N |
| GVD-100BX-S54-80 | 155M | 80km | 1590nm/1490nm | SC/LC | Y/N |
| GVD-100BX-S45-80 | 155M | 80km | 1490nm/1590nm | SC/LC | Y/N |
| GVD-100BX-S54-120 | 155M | 120km | 1590nm/1490nm | SC/LC | Y/N |
| GVD-100BX-S45-120 | 155M | 120km | 1490nm/1590nm | SC/LC | Y/N |
| GVD-1000BX-S43-3 | 1.25G | 3km | 1490nm/1310nm | SC/LC | Y/N |
| GVD-1000BX-S34-3 | 1.25G | 3km | 1310nm/1490nm | SC/LC | Y/N |
| GVD-1000BX-S53-3 | 1.25G | 3km | 1550nm/1310nm | SC/LC | Y/N |
| GVD-1000BX-S35-3 | 1.25G | 3km | 1310nm/1550nm | SC/LC | Y/N |
| GVD-1000BX-S43-20 | 1.25G | 20km | 1490nm/1310nm | SC/LC | Y/N |
| GVD-1000BX-S34-20 | 1.25G | 20km | 1310nm/1490nm | SC/LC | Y/N |
| GVD-1000BX-S53-20 | 1.25G | 20km | 1550nm/1310nm | SC/LC | Y/N |
| GVD-1000BX-S35-20 | 1.25G | 20km | 1310nm/1550nm | SC/LC | Y/N |
| GVD-1000BX-S43-40 | 1.25G | 40km | 1490nm/1310nm | SC/LC | Y/N |
| GVD-1000BX-S34-40 | 1.25G | 40km | 1310nm/1490nm | SC/LC | Y/N |
| GVD-1000BX-S53-40 | 1.25G | 40km | 1550nm/1310nm | SC/LC | Y/N |
| GVD-1000BX-S35-40 | 1.25G | 40km | 1310nm/1550nm | SC/LC | Y/N |
| GVD-1000BX-S54-80 | 1.25G | 80km | 1590nm/1490nm | SC/LC | Y/N |
| GVD-1000BX-S45-80 | 1.25G | 80km | 1490nm/1590nm | SC/LC | Y/N |
| GVD-1000BX-S54-120 | 1.25G | 120km | 1590nm/1490nm | SC/LC | Y/N |
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts all new materials. All the optical transceivers have been through functional test and aging test. We provide 5 years warranty for all the optical transceivers from the date of shipment.
What we focus
We focus on all kinds of compatible optical transceiver modules , including SFP , GBIC , SFP+ , XENPAK , X2 , XFP , BIDI ,CWDM , DWDM and other special transceiver modules . Our products are compatible with Cisco , Ciena , Extreme , Foundry , HP , Avaya , D-link , H3C , Alcatel , Riverstone , Enterasys , Netgear , Nortel , Juniper , Ruijie , Zyxel , Huawei , etc .
Our product show
Product Tags:
|
|

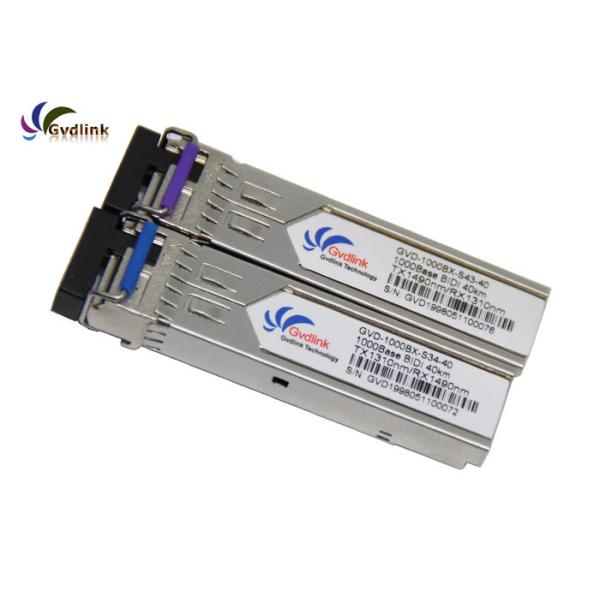

GLC-BX40-U-I Compatible 1490nm SFP Fiber Transceiver Module Images
|
